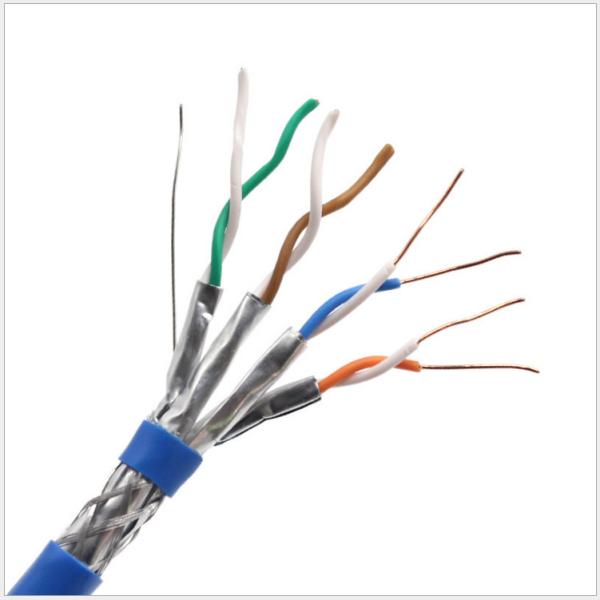

    High Speed Shielded Twisted Pair SSTP 305m CAT7 LAN Cable

    Ask Lasest Price
    Brand Name : OEM/ ODM/ YUEXIANKE
    Model Number : CAT7 S/STP
    Certification : UL/ CE/ ETL/ ROHS/ ANATEL
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 3000 Boxes/Day
    Delivery Time : 12-15 work days
    • Product Details
    • Company Profile

    High Speed Shielded Twisted Pair SSTP 305m CAT7 LAN Cable

    High Speed best price shielded Twisted Pair Network Cable Cat7 SSTP Lan network Cable with 305m 4 Pair 8 Core


    Superiority

    1.Top sale cat5e,cat 6,cat7 patch cord cable
    2.Best price
    3.Delivery on time cat5e,cat 6,cat7 lan cable,rj45 patch cord cable
    4.High quality and good service
    Specifications
    Place of Origin:Guangdong, China (Mainland)
    Brand Name:YILIAN
    Model Number:4pairs
    Type:cat5e,cat 6,cat7 cable,telephone cable
    Number of Conductors:8
    Color:blue/grey/black/white/green/red or Customized
    Jacket:PVC,LSOH,LSZH
    Package:305m/box or Customized
    Insulation:PE/HDPE
    Length:305m/box or 100m/box or customized
    Conductor material:BC/CCA/CCS/CU/CCAM/CCC
    Certificate:CE/ROHS/FC
    ITEM
    SSTP CAT7 CAT7A ETHERNET CABLE
    Conductor
    Solid bare copper (OFC)
    AWG
    22AWG/23AWG customized
    Conductor Diameter(mm)
    0.583±0.02
    Insulation
    Foam-skin PE
    Insulation Average Thicknes
    0.419mm(Min at any point:0.40mm)
    Jacket
    PVC/LSZH
    Sheath Average Thickness
    0.05mm(Min at any point:0.40mm)
    Sheath Diameter
    7.4±0.3mm
    Elongation
    Min.100%
    Tensile Strength
    Min.1.407 Kg/mm2
    Aging at 100℃ for 168Hrs
    Min.elongation retention:50%;Min.tensile strength retention:75%
    Rip cord
    Including
    Color Code
    Blue/White-Blue ;Orange/White-Orange ;Green/White-Green ;Brown/White-Brown
    Spark Test
    1050 V ac
    Dielectric Strength
    2500 V dc/3 seconds
    Insulation Resistance Test
    Min.150 MΩ/Km
    Conductor Resistance
    Max.9.38Ω/100m at 20℃
    Resistance Unbalance
    Max. 2%
    Capacitance Unbalance
    Max. 160 pF/100m
    Mutual Capacitance
    Max. 5600 pF/100m

    High Speed Shielded Twisted Pair SSTP 305m CAT7 LAN CableHigh Speed Shielded Twisted Pair SSTP 305m CAT7 LAN Cable

    FAQ


    Q1: Are you a factory or trading company?
    A1: We are a manufacturer.

    Q2: Where is your factory located? How can I visit there?

    A2:Our factory are located in dongguan city.

    You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

    Q3: May I buy samples from you?

    A3: Yes! You are welcome to place sample order to test our superior quality and services.

    Q4: What is your Warranty?

    A4: All the products will have 12 months Warranty

    Q5:What payment method do you accept?

    A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

    Q6: Can you put my brand name (logo) on these products?

    A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

    Q7: May I know the status of my order?

    A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

    Q8: What’s the leading time? (How long do you need to prepare my goods?

    A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

    Q9: How will you deliver my goods to me?

    A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

    Q10: Can you provide us more other products to us to help us to save more shipping costs?

    A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well.
