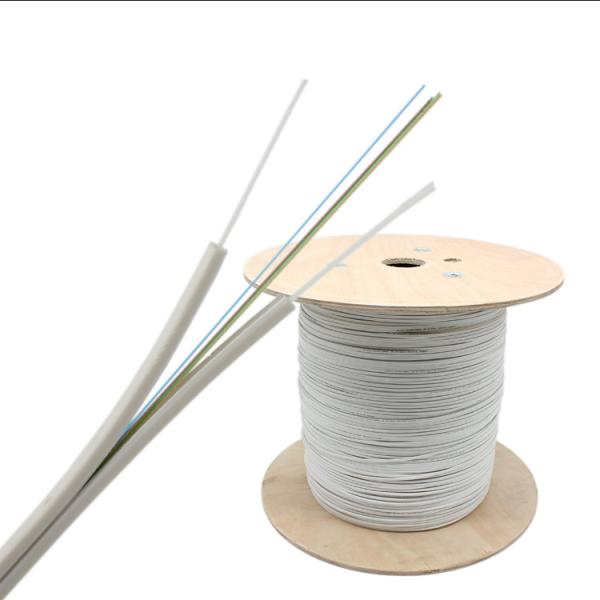

Dual Core Fiber Optic Cable FTTH 16 GJXFH 2B6A2 Fiber Drop TV Cable G657A 1/2/4/6/12 Core LSZH Jacket
1. Special Low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property
2. Two parallel FRP strength members ensure good performance of
crush resistance to protect the fiber
3. Single steel wire as the additional strength member ensures good
performance of tensile strength
4. Simplex structure,light weight and high practicability
5. Novel flute design, easily strip and splice,simplify the
installation and maintenance
6. Low smoke,zero halogen and flame retardant sheath
Parameters
| Cable Type | GJYXCH-1,2,4B6.A2 | ||
| Cable Dimension | 5.2mm x 2.0mm | ||
| Fiber Type | 9/125 (G.657A2) | ||
| Fiber Counts | 1 | 2 | 4 |
| Tight Buffer Color | Nature | Nature, Blue | Nature,Blue,Orange,Green |
| Min. Bending Radius | 120mm | ||
Min.Bending Radius (rip off the messenger wire) | 10 (Static) 25 (Dynamic) | ||
| Attenuation dB/km | =<0.336 at 1310nm,= <0.198 at 1550nm | ||
| Short Term Tensile | 600N | ||
| Crush Resistance | 2200N/100mm | ||
| Operation temperature (℃) | -20~+70 | ||
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.


FAQ
1.What is your MOQ?
Could be coordinated if you have detail requirements.
|
