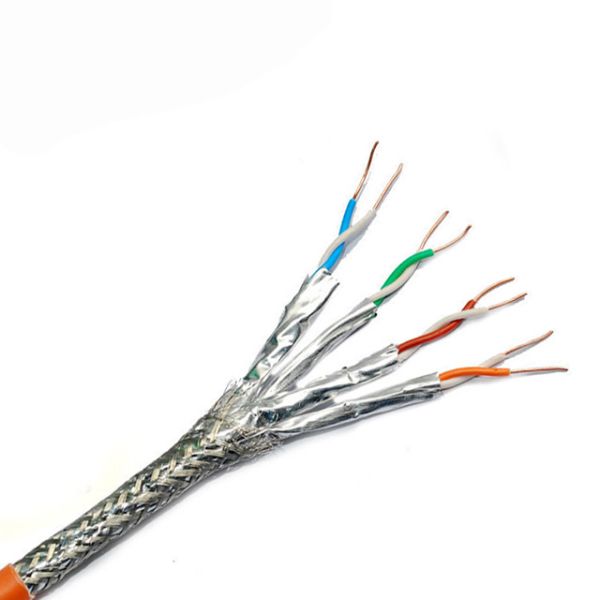

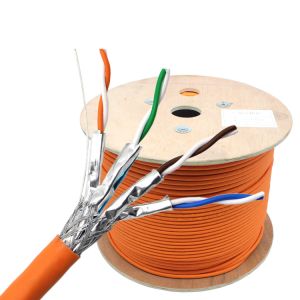

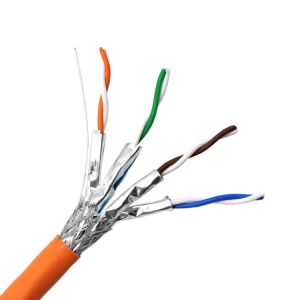

    40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP

    Ask Lasest Price
    Brand Name : YUEXIANKE/OEM/ODM
    Model Number : CAT8
    Certification : Unilever/ROSH/CE/ANATEL/CPR/ETL
    Price : Negotiation
    Payment Terms : , T/T, MoneyGram
    Supply Ability : 400000 Piece/Pieces per Month, sample is available
    Delivery Time : 7-15 business days
    • Product Details
    • Company Profile

    40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP

    40G High Speed 2000Mhz Double Shielded FTP CAT8 CAT7E Etherent Function Network Cable

    High Quality Material
    99.99% Bare Copper Core
    Twist Pairs
    Close pairs twisted to achieve low loss
    Incredible Durability
    Durable PVC/ LSZH jacket for maximum curve protection and long life cycle
    Environment Jacket
    New flexible enviroment PVC/LSZH jacket
    Features
    Precise triple-twist technology to achieve high transfer performance
    Rated temperature over 75 °C
    Minimum bending radius over 8D
    RoHS/REACH Complied PVC, PE or LSZH Jacket
    Reference Standard UL444
    Fire resistance rate: CMP, CMR,CM optional
    Complies to ANSI/TIA-568-C.2 &ISO/IEC 11801; EN50173&IEC61156-5
    Application
    Volp /ISDN/ Token
    100Mbps TP-PDM
    Analog and Data Video
    TR-16 Active and Passive
    155M/622M/1.2G ATM
    IEEE 802.3-T: 10Base-T; 100Base-T; 1000Base-T;10GBase-T
    ITEM
    SSTP CAT8 ETHERNET CABLE
    Conductor
    Solid bare copper (OFC)
    AWG
    22AWG
    Conductor Diameter(mm)
    0.64±0.02
    Insulation
    Foam-skin PE
    Insulation dimension(mm)
    1.68±0.05
    Jacket
    PVC/LSZH
    Sheath Average Thickness
    0.75mm
    Sheath Diameter
    8.4±0.3mm
    Individual shield & material
    Alumimum foil (50/12um)
    Overall shield & material
    Tinned Copper
    Shield coverage
    Over 45% (16/6/0.1)
    Drain wire
    1/0.32 BC
    Elongation after aging
    Min.100%
    Tensile Strength after aging
    Above 8Mpa
    Aging at 100℃ for 168Hrs
    Min.elongation retention:50%;Min.tensile strength retention:75%
    Rip cord
    Including
    Color Code
    White/Blue;White/Orange;White/Green;White/Brown
    Spark Test
    1050 V ac
    Dielectric Strength
    2500 V dc/3 seconds
    Insulation Resistance Test
    5000M ohm each km
    Conductor Resistance
    2.4ohm/30m
    Resistance Unbalance
    Max. 4%
    Capacitance Unbalance
    Max. 99pF/30m
    Mutual Capacitance
    Max. 5600 pF/100m
    Crack Test
    Cold bend No crack (@-20℃x4hrs);Hot impact NO Crack(@150℃x4hrs)

    40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP40G 2000Mhz CAT8 CAT7E Ethernet LAN Cable Double Shielded FTP


    2.Packing & Shipping
    1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
    2) Inner Packing: Wooden reel, plastic reel, and paper reel
    3) Outer Packing: Carton box, pull out box, pallet available
    4) Other packing available according to clients' request
    5) Usually we deliver our products by SEA. Other delivery methods are available upon request from clients.



    3.Our service
    1) Quick Response -- All inquiries will be replied within 24 hours.
    Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
    2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
    3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
    4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
    5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.


    4.What is the process of an order?

    Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...


    5. Good after-Sale Service.

    1) All products will have been strictly Quality Checked in house before packing.

    2) All products will be well packed before shipping.

    5. Faster delivery

    Sample order in stock, and 3-7 days for bulk production.

    6. Shipping:

    We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.


    6.FAQ

    Q1: Are you a factory or trading company?
    A1: We are a manufacturer.

    Q2: Where is your factory located? How can I visit there?

    A2:Our factory are located in dongguan city.

    You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

    Q3: May I buy samples from you?

    A3: Yes! You are welcome to place sample order to test our superior quality and services.

    Q4: What is your Warranty?

    A4: All the products will have 12 months Warranty

    Q5:What payment method do you accept?

    A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

    Q6: Can you put my brand name (logo) on these products?

    A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

    Q7: May I know the status of my order?

    A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

    Q8: What’s the leading time? (How long do you need to prepare my goods?

    A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

    Q9: How will you deliver my goods to me?

    A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

    Q10: Can you provide us more other products to us to help us to save more shipping costs?

    A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well


    Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8

    Utp/Ftp/Sftp/Stp Network Cable,

    Power Cable,Coaxial Cable,

    Telephone Cable Etc.


    Welcome To Visit Our Factory !
